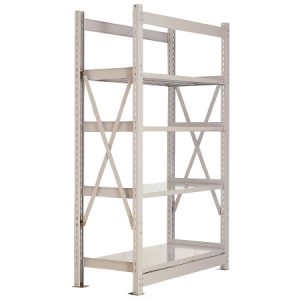

01 Library Shelving

Description

Top	:	The front and back edges are triple bent to enhance strength and rigidity.
		Material – thickness 0.9mm C.R.S.S
Side	:	The side L/R have have 2 side brace welded to hold the upright
		Material – thickness 0.9mm C.R.S.S
Upright	:	Two channel are welded together and welded to a 2” x 3” RHS which acts as leg base. Slots of 25mm intervals are punched on the upright for easy adjustability.
		Material – thickness 1.5mm C.R.S.S
Bottom Brace	:	1” X 2” RHS Bar with both ends welded with 3mmt plate with holes which will be riveted to the upright.
Shelf & Shelf end	:	Shelf is bent on all four sides and is riveted to the shelf end.Shelf can withstand a load of 70kgs Shelf Depth – 228mm Material – thickness 1.2mm C.R.S.S
Book Support	:	The book support is made from diameter 5mm wire which can slide underneath the shelf and can stop at any point to support the books.
Wire & Turn Buckle	:	Diameter 3mm high tension wire and 6” turn buckle is used to strengthen the rigidity of the library shelving diagonally.
Color	:	Ral Gray or Beige powder coated.
